BEVAV 80A Voltage Protector – Adjustable Volt & Amp VAP-01/80A

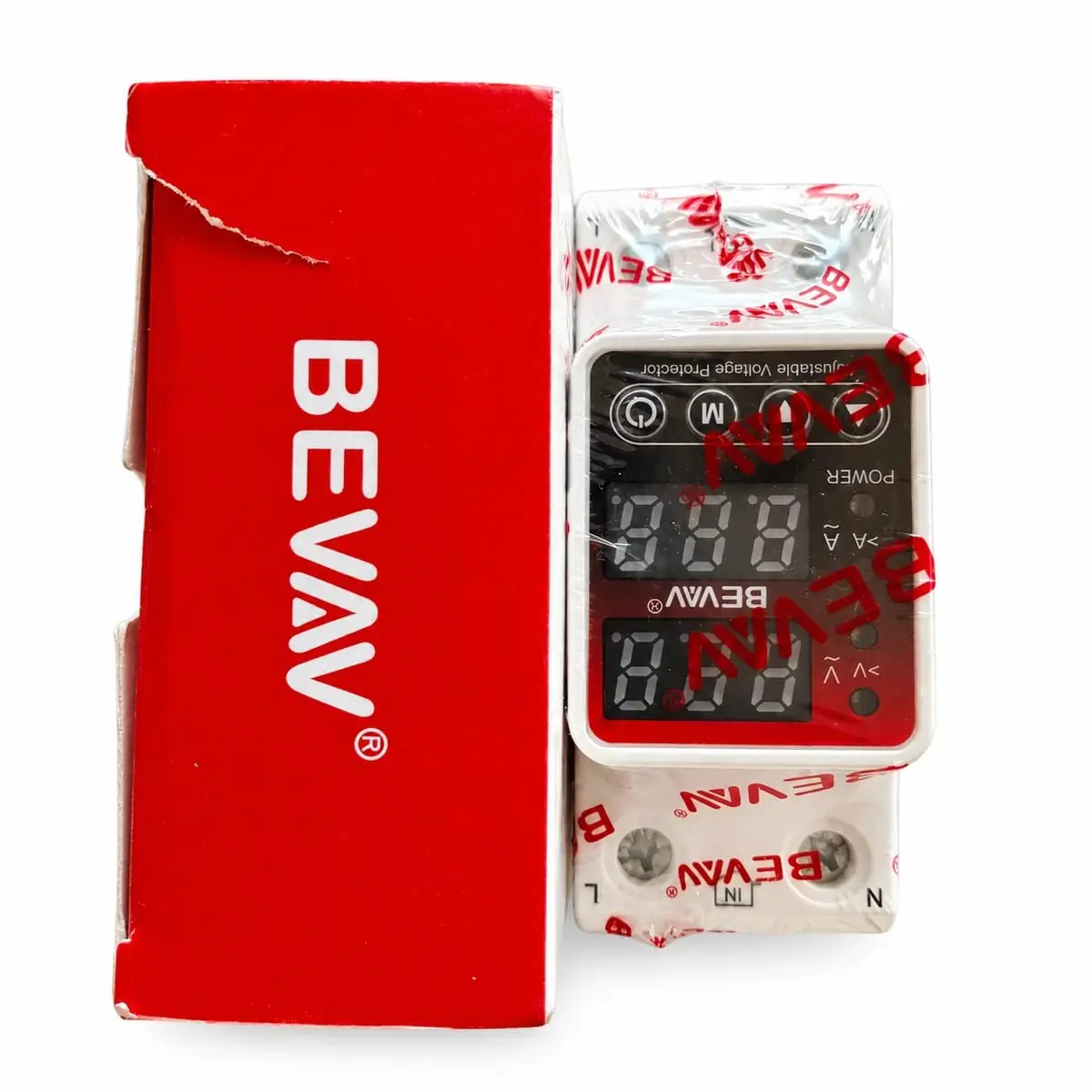

BEVAV 80A Voltage Protector – VAP-01/80A

The BEVAV 80A voltage protector VAP-01/80A combines adjustable voltage and current protection with two digital display windows. It provides front-panel controls for configuring protection settings and viewing voltage and amperage readings. This model is labelled as an adjustable Volt & Amp Protector, with a current adjustment range of 1–80A and an AC input range of 100–450V.

Adjustable Overvoltage Protection

The overvoltage setting range printed on the product label is 230–300V. This range allows the upper voltage protection threshold to be selected according to the requirements of a compatible electrical installation.

The correct threshold depends on the equipment connected to the circuit. It should be configured using the manufacturer’s instructions and the equipment’s permitted voltage limits. The highest available setting is not automatically the most suitable setting for every appliance or installation.

Adjustable Undervoltage Protection

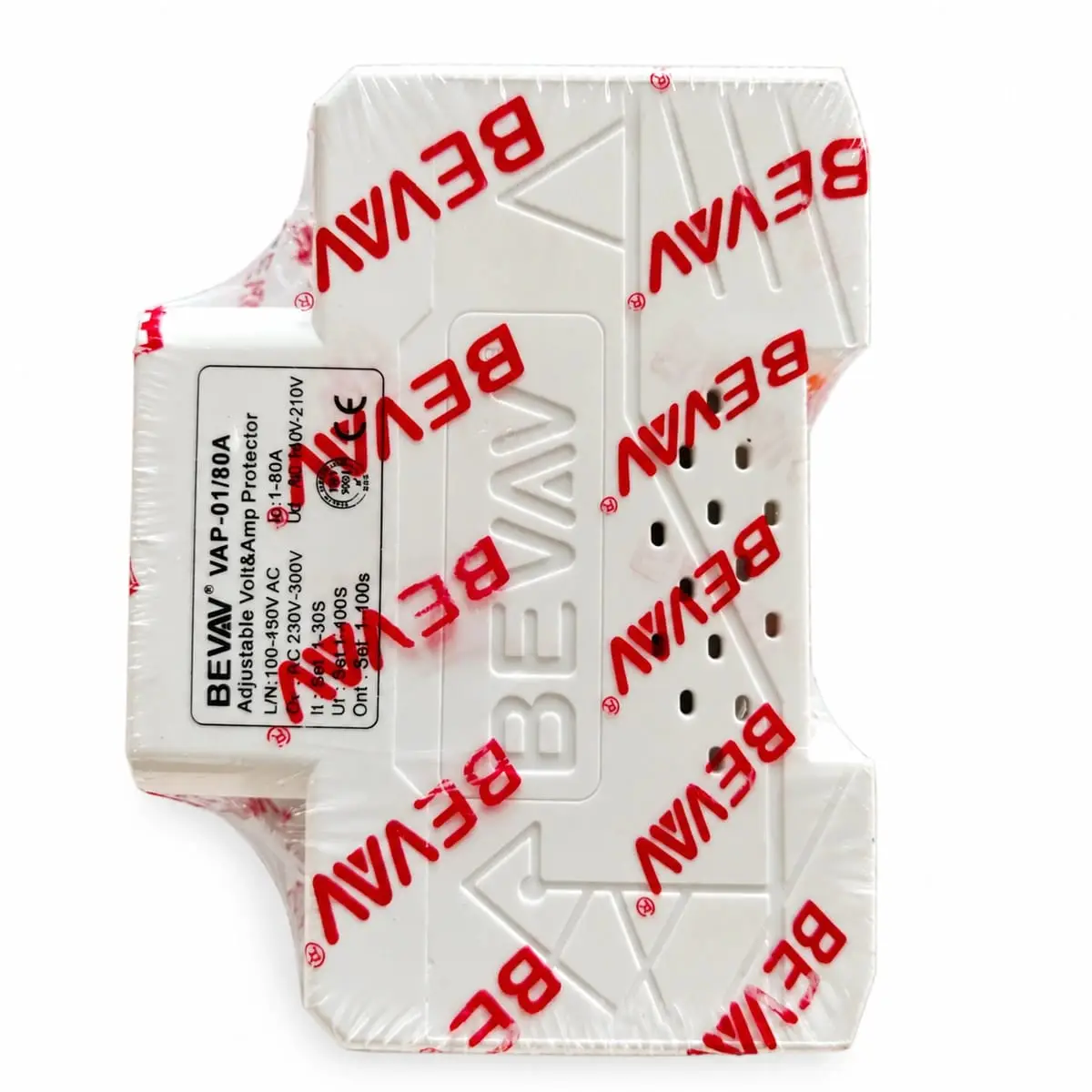

The undervoltage setting range is 140–210V, as indicated on the side label. This setting allows the lower voltage protection threshold to be adjusted.

Upper and lower voltage thresholds serve different purposes and should be considered together when configuring the protector. A qualified electrician should select suitable values for the intended circuit rather than relying on a single general setting for all electrical equipment.

Current Adjustment from 1–80A

The BEVAV 80A voltage protector has a labelled current adjustment range of 1–80A. This makes the current setting configurable within the stated range.

The 80A model designation does not mean that every existing circuit can safely carry 80A. The selected setting must take account of the cable size, circuit design, connected load and other protective devices. Confirm these details before installation or adjustment.

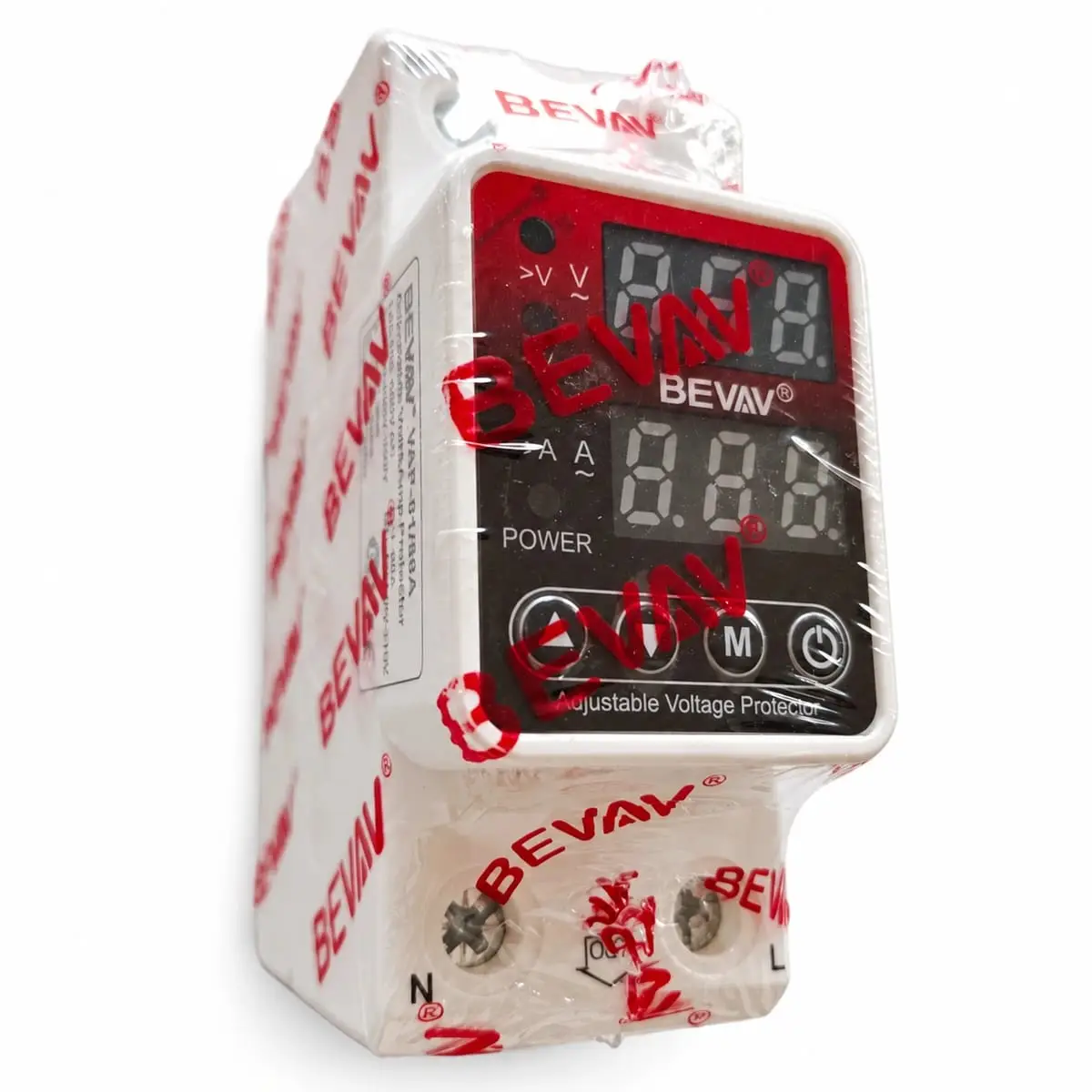

Dual Digital Voltage and Current Display

Two separate digital display windows provide voltage and current readings on the front of the device. The panel also includes adjustment buttons, an M button, a power button and status indicators.

The red and black front panel separates the display areas clearly, while the white housing carries the terminal markings. The supplied product photograph shows the device without power, so the segmented display outlines should not be interpreted as live readings.

BEVAV 80A Voltage Protector Specifications

• Brand: BEVAV
• Model: VAP-01/80A
• Product type: Adjustable voltage and current protector
• Model current rating: 80A
• Adjustable current range: 1–80A
• Labelled input range: AC 100–450V
• Overvoltage setting range: 230–300V
• Undervoltage setting range: 140–210V
• Display: Separate digital voltage and current windows
• Controls: Front-panel adjustment, M and power buttons
• Housing colour: White
• Front-panel colours: Red and black

Understanding the Input Voltage Range

The AC 100–450V figure describes the input range printed on the product label. It is separate from the adjustable upper and lower voltage protection settings.

This protector should not be described as a voltage stabilizer. The stated input range does not mean that it converts varying input voltages into a constant output voltage. Choose equipment according to its actual function and the requirements of the installation.

Installation and Configuration

Have the protector installed by a qualified electrician. Wiring, terminal connections and configuration should follow the instructions supplied for this exact model.

Before connecting equipment, confirm that the installation is compatible with the protector’s ratings. Any delay or timing settings should be checked against the complete product manual, because those small details are not clearly readable in the supplied label photograph.

Frequently Asked Questions

What is the model number?

The model printed on the label is BEVAV VAP-01/80A.

Can the current setting be adjusted?

Yes. The product label specifies a current adjustment range of 1–80A.

What are the voltage protection setting ranges?

The labelled overvoltage range is 230–300V, and the undervoltage range is 140–210V.

Does it display both voltage and current?

Yes. The front panel has separate digital display windows for voltage and current readings.

Is a warranty included?

Warranty availability and duration must be confirmed with Saboor Store before ordering. No manufacturer warranty period is stated in this listing.
